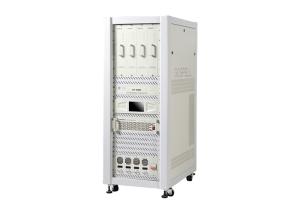

Medium Power Air Cooled UHF Terrestrial DTV Transmitter

Product overview

Gospell’s GT-5900-1600 is a medium power air cooled UHF terrestrial DTV transmitter which combines up to four power amplifier modules with a maximum 1600W of output power. It has superior performance and enhanced efficiency by adopting a series of technologies. It can work in any frequency within the UHF span, and the transmitting bandwidth can be up to 80MHz.

This series of products has an optimized design in forced air cooling and architecture, with lower noise, higher efficiency and outstanding anti-interference performance; GT-5900-1600 series can support a wide range of Digital Terrestrial Television (DTT) standards, such as DVB-T/H, ATSC, DTMB, ISDB-T/Tb and even the latest DVB-T2 standards.

By incorporating our latest technologies of linear and non-linear digital adaptive pre-correction, RF delay and co-channel interference rejection, this system fulfills the needs of single band or broadband transmission in medium to large-scale terrestrial coverage scenarios.

Main Features and Benefits:

High Performance

Supports up to 2500W of digital output power for DVB-T/DVB-T2/ISDB-T standard

Up to 3000W of digital output power for DTMB/ATSC standard

Optimized structure design, with lower noise, higher efficiency and outstanding anti-interference performance

High Flexibility and Stability

Modular design across the whole system, easy installation, maintenance and upgrade

Optional 1+1 redundant exciters and Preamplifiers

Multiple protection mechanisms are introduced for over load, over temperature, over current and high VSWR

Large and dynamic Auto Gain Control (AGC) circuit ensures stability of output power

Improved power efficiency thanks to linear and non-linear Digital Adaptive Pre-correction

High Adaptability and Availability

Suitable for different contries and/or areas because multiple DTT standards are complied with, including DVB-T, DVB-T2, ATSC, DTMB and ISDB-T/Tb

Available in single and three phase power grid environments to meet different requirements of deployment

Wide range of working frequency from 470MHz to 860MHz

Lower CAPEX/OPEX

Improved ratio of cost to performance, lower CAPEX for operators

Low power consumption with high efficient LDMOS amplifiers to reduce electricity cost for operators

Reduced investment in manpower, benefits from convenient local monitoring and management through built-in touch screen display or remote monitoring via SNMP network management and/or telcom wireless network

User Friendly Monitoring Interface

Built in color TFT LCD with touch screen in the front panel, supports monitoring & control of working states and any malfunction on any module without additional testing/monitoring equipment required, such as transmitting power, VSWR, working voltage/current, fan speed, IP address and so on.

Block Diagram:

Medium Power DTV Transmitter With 1+1 Redundant Exciters / Preamplifiers

Technical Specifications:

Items Ordering Codes GT-5900-800 GT-5900-1000 GT-5900-1200 GT-5900-1600
General Parameter Output Power(RMS)* 800W 1000W 1200W 1600W
Number of PAs 3 4
Number of Power Supplies 3 4
Weight 230Kg(507 lbs) 250Kg (551 lbs)
Frequency Range(FIN) 470 to 860MHz
Channel Bandwidth 6MHz, 8MHz
Supported Standards DVB-T2, DVB-T/H, DTMB, ATSC, ISDB-T/Tb
Transmitting Mode

Standard: Single band

Optional: Broadband (maximum 80MHz)

Supported Network SFN or MFN
Cooling Method Forced Air Cooling with top-mounted ventilation flue
Dimensions (W x H x D) 650mm x 1700mm(35U) x 1000mm (25.6’’ x 66.9’’ x 39.4’’)
Notes: * The above output powers are calculated per ATSC/ DTMB standards under single band mode.

Main

Components

Preamplifier 1 x Preamplifier module(3U)
Exciter (Optional)** 1 x DVB-T2/DTMB Exciter(modulator) (1U)**
Power Splitter and Combiner Built-in
Monitoring and Control Unit 1 x Monitoring control unit(2U) with 7” LCD touch screen
Bandpass Filter(Optional) Optional Single band or broadband Bandpass filter
Notes: ** Please contact our sales representative for the other exciter/modulator requirements.
Environmental Operating Temperature 0 to 45°C
Operating Humidity 0 to 95%, non-condensing
Power Supply AC Input Three-Phase Option 4 wires (3-phase + neutral), 342-418V AC, 50Hz±5%
Single-Phase Option 2 wires, 190-250V AC, 50Hz±5%
Surge Protection Built-in AC Surge Protector

I/O

Interface

TS Input DVB-ASI (BNC female, 75Ω) (DTMB/DVB-T2 Exciter)
MPEG-TS over IP 100/1000Base-T, RJ-45 (DVB-T2 Exciter)
RF Output EIA 1-5/8’’ flange
1PPS Clock Input BNC, female, 50Ω(DTMB/DVB-T2 Exciter)
10MHz Clock Input BNC, female, 50Ω(DTMB/DVB-T2 Exciter)
RF Monitor Output SMA, female, 50Ω
Monitoring & Control Local Monitoring & Control TFT LCD touch screen
Network Management Interface

10/100 Base-T Ethernet, 1 x RJ-45,

Supporting Web-browser or SNMP network management

Electric Performance Frequency Stability

≤ ±1 x 10-7(Internal reference)

≤ ±1 x 10-10 (External 10MHz reference clock)

Frequency Accuracy MFN: ≤ ±100Hz, SFN: ≤±1Hz
MER ≥33 dB
Shoulder of Signal @fc±4.2MHz ≤ -36dB
In-band non-flatness@fc±3.591MHz ≤ ±0.5dB
AGC Power Control Range (∆GAGC) ±8dB
Stability of Output Power (∆POUT) ≤ ±0.5dB
